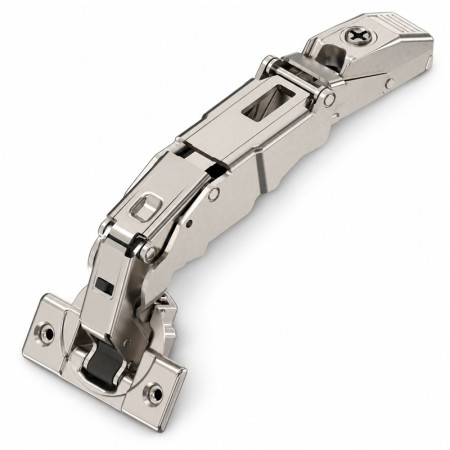

BLUM 71B7550 CLIP top BLUMOTION 155° Screw-On Hinge – Nickel-Plated
155° wide-angle hinge for overlay cabinet doors, featuring integrated, switchable BLUMOTION soft close. Zero-protrusion design for cabinets with inner drawers. Screw-on Ø 35 mm cup and CLIP attachment. Supplied individually, without mounting plate or cover caps.
The payment methods are: Visa card, Mastercard, PayPal, bank transfer
via Colissimo, Chronopost, Mondial Relay ou UPS
14 days after receipt of the products
Wide opening and gentle closing
The BLUM 71B7550 provides convenient access to cabinet interiors. Its zero-protrusion design allows inner drawers to pass the open door when installed according to Blum specifications. Integrated BLUMOTION provides gentle closing and can be deactivated for small or lightweight doors. The CLIP mechanism allows tool-free attachment to and removal from compatible mounting plates.
Specifications
- Reference: 71B7550 — CLIP top BLUMOTION
- Overlay application; opening angle: 155°
- Nickel-plated finish; screw-on cup Ø 35 mm
- Cup drilling depth: 11.7 mm; fixing hole spacing: 45 mm
- Side adjustment: ± 2 mm; depth adjustment: + 3 / − 2 mm
- Height adjustment depends on the mounting plate.
Installation
- Determine the door overlay and select suitable CLIP mounting plates.
- Drill the Ø 35 mm cup holes according to Blum specifications. Distance from door edge to cup-hole edge: 3–8 mm, depending on the application.
- Secure the cups using screws suitable for the door material.
- Fix the mounting plates to the cabinet and clip the hinges into place.
- Adjust alignment and check opening, closing and inner drawer clearance.
Package contents
1 BLUM 71B7550 hinge, without mounting plate or cover caps. A compatible mounting plate is required and must be ordered separately.
The mounting plate shown in the installation view is not included.
